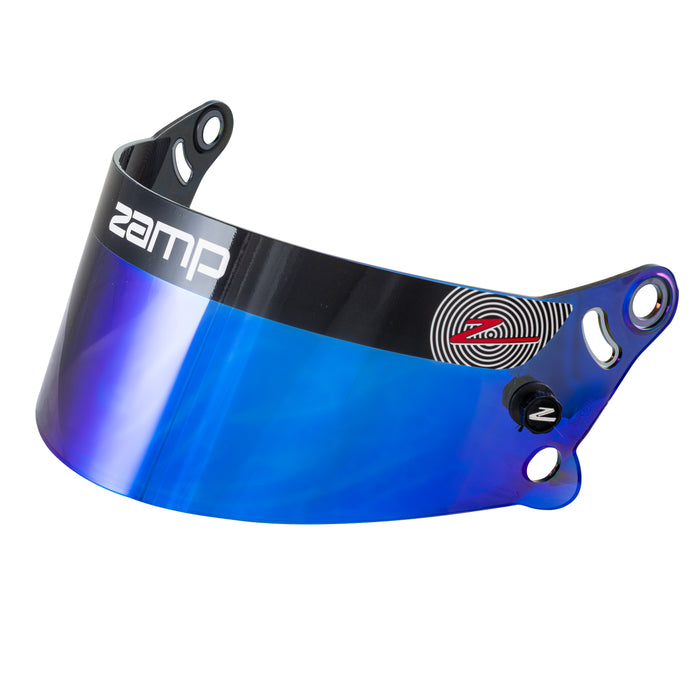

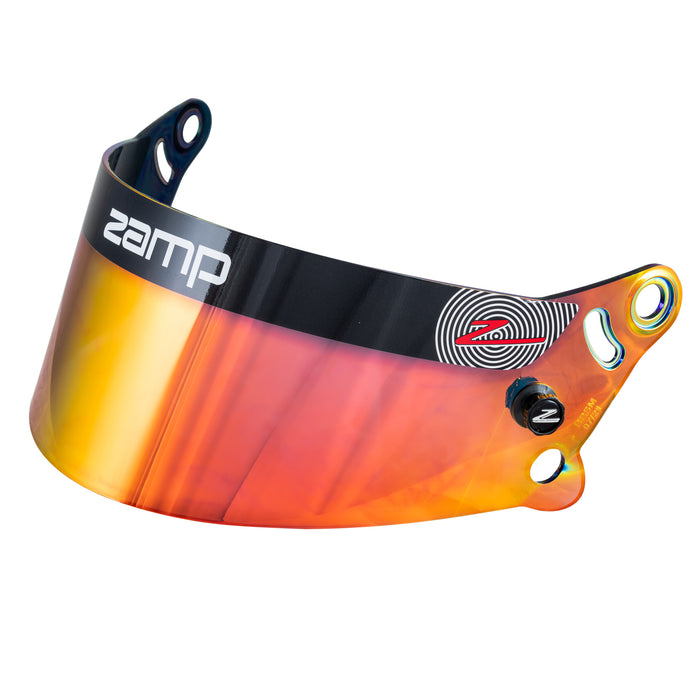

<!-- more --> <div class="tabbox"> <input type="radio" checked name="tabs" id="tab1"> <label for="tab1">Overview</label> <input type="radio" name="tabs" id="tab2"> <label for="tab2">Shield Replacement Guide</label> <section id="content1"> <ul> <li> <p><span>Zamp-Racing recommends that you periodically change shields for better vision and safety.</span></p> </li> </ul> <ul> <li>Manufacturer part number:</li> <ul> <li> <span style="color: #2b00ff;">HASZ20AM</span> (Amber)</li> <li> <span style="color: #2b00ff;">HASZ20CL</span> (Clear)</li> <li> <span style="color: #2b00ff;">HASZ20DK</span> (Dark Smoke)</li> <li> <span style="color: #2b00ff;">HASZ20IM</span> (Iridium)</li> <li> <span style="color: #2b00ff;">HASZ20LT</span> (Light Smoke)</li> <li> <span style="color: #2b00ff;">HASZ20SM</span> (Silver Mirror)</li> </ul> </ul> <ul> <li>ZAMP Z-20 Series Shield Fitment Guide: <ul> <li>Zamp RZ-36</li> <li>Zamp RZ-36 Dirt</li> <li>Zamp RZ-36 Air</li> <li>Zamp RZ-37Y Youth</li> <li>Zamp RZ-42Y Youth</li> <li>Zamp RZ-42Y Youth Graphic</li> <li>Zamp RZ-56</li> <li>Zamp RZ-56 Air</li> <li>Zamp RZ-59</li> <li>Zamp RZ-60</li> <li>Zamp RZ-60V</li> <li>Zamp RZ-62<br> </li> <li>Zamp RZ-62 Graphic</li> <li>Zamp RZ-62 Air</li> <li>Zamp RZ-64C</li> <li>Zamp RZ-65D Graphic</li> <li>Zamp RZ-70E Switch</li> <li>Zamp RL-70E Switch </li> </ul> </li> </ul> </section> <section id="content2"> <ul> <li> <p><strong>NOTE: </strong>DO NOT USE power tools or overtighten screws when changing shields.</p> </li> <li> <p><span><strong>Step 1</strong> - Lay a towel on a flat surface and set the helmet on it.</span></p> </li> <li> <p><span><strong>Step 2</strong> - Remove the shield pivot tensioners on each side. (This is the smaller crew on the sides of the shield.)</span></p> </li> <li> <p><span><strong>Step 3</strong> - Remove the shield pivot screws on each side. (This is the larger screw on the sides of the shield. For best results, we suggest using a quarter to loosen/tighten these screws).</span></p> </li> <li> <p><span><strong>Step 4</strong> - Remove the shield. We suggest using a soft cloth towel to wipe down the rubber seal as well as where the shield mounts to the helmet for best results.</span></p> </li> <li> <p><span><strong>Step 5</strong> - Place the new shield on the helmet. There are two white washers that go between the shield and helmet, make sure these are in place before re-installing the shield pivot screws.</span></p> </li> <li> <p><span><strong>Step 6</strong> - Hand thread the shield pivot screws to hold the shield in place. Once hand threaded, use a quarter to tighten until snug with the helmet shell. Do not over-tighten.</span></p> </li> <li> <p><span><strong>Step 7</strong> - Hand thread the shield pivot tensioners, then tighten to desired tension for shield movement.</span></p> </li> </ul> </section> </div>
