WiseRail® WiseCable® Heritage WC-HS
Cable Railing on Level Straight Runs
The WiseCable® Heritage WC-HS Series is a budget-friendly cable railing kit for any type of wood post as an outside to outside fitting on a straight level run or on a pitch or stairs. The tensioning device is a 2-7/8” long threaded stud which installs on the back side of one end post. A pull lock fitting is installed through the other end.
This through-the-post configuration is the only scenario in which the economical threaded stud kits may be used. These threaded stud kits are more economical than the WiseCable® Estate WC-ES Series, but the threaded studs are a basic, functional fitting, not a hide-in-the-post solution. A brass hex nut and some metal thread will extend beyond the back of the post on one end. (Brass hex nut end cap sold separately.)

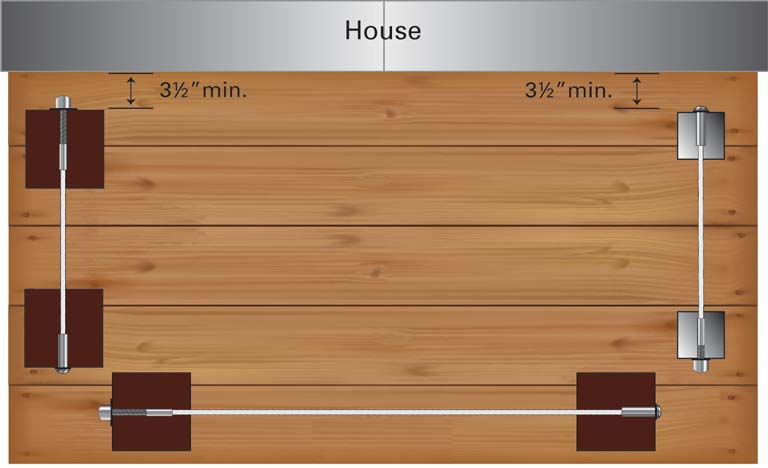

Use the WiseCable® Heritage WC-HS Series for decks with dedicated end posts for each run where the posts are situated such that, the back sides of the posts are all accessible. Meaning you can use a through-the-post configuration. This is both the most economical solution and where the fittings are least visible.
When taking the WiseCable® Heritage WC-HS Series cable railing through a corner, do not bend the cable past 45⁰ at any one time. If turning 90⁰, a 2-step turn using a double corner post configuration is required as illustrated in the corner post instructions (view here).
What's included in the kit?
10 Pack: For use with 36" posts, cables spaced vertically 3" on center. You get 10 packs of cables in the length you choose.12 Pack: For use with 42" posts, cables spaced vertically 3" on center. You get 10 packs of cables in the length you choose.14 Pack:For use with 48" posts, cables spaced vertically 3" on center. You get 10 packs of cables in the length you choose.
Tools needed for WiseCable® Heritage WC-HS Series on level straight runs:
5/32 drill bit
9/32 drill bit for threaded stud installation
29/64 drill bit for pull lock installation
7/32 wrench for holding the stud
7/16 wrench for tightening jam nuts
Cable cutting tool
If using post protector tubes, 1/4 drill bit
INSTALLATION GUIDE INSTALLATION ACCESSORIES
To keep the cable from biting in the wood, a post protector tube must be inserted into the wood post where the cable enters/exits at an angle. See Cable Railing on a Pitch or Stairs below.
