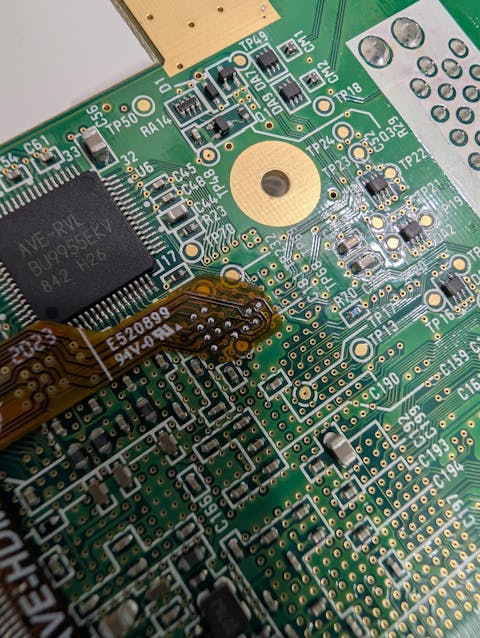

Size: 46.75mm x 30.6mm Supply Voltage: 3.3V and 5V Video Input:  Wii Digital Video Audio Input:  Wii I2S Video Output: HDMI™ Typical Current: 140mA @ 3.3V, 20mA @ 5V   This design accepts the digital video output from the Nintendo Wii and uses ikorb’s GCVideo to output a high quality, configurable HDMI™ output to any compatible display! All ElectronAVE units are sent with the latest stable release of GCVideo. Currently that version is 3.1.   The ElectronAVE can easily be installed into any Wii (excluding the Wii Mini) using the on-board vias associated with the internal digital video and audio communications.Unlike the original version of the ElectronAVE, this product is a kit. This kit contains the ElectronAVE, a 150mm long flex cable, and a mini-HDMI™ breakout board.  As of April 4th, 2023 all purchases of this kit will include an IR Sensor Board by default for Wii's that do not have a GameCube controller ports. This board can be installed in Wii's that do have GameCube controller ports, but it is not necessary.   This design can either be used directly as is or configured with the use of a universal remote or a GameCube controller. If you want to use a GameCube controller for configuration, then you can press L+R+X+Y and the configuration menu will open. GameCube controllers can only be used on Wii's that have GameCube controller inputs. All software licensing that appears on ikorb’s repository for GCVideo applies to this product. Electron Shepherd LLC claims no ownership of the binary that is loaded onto this product.All company, brand, and product names are trademarks or registered trademarks of their respective holders. Electron Shepherd LLC has no affiliation to, is not associated or sponsored by, and has no express rights to third-party trademarks. The terms HDMI, HDMI High-Definition Multimedia Interface, HDMI trade dress and the HDMI Logos are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.  Warnings This installation is difficult if you are not confident in your soldering skills or if you do not have magnification available.  We highly recommend that you review the installation video below before purchasing this to determine whether or not you feel comfortable with all of the steps involved.   If you do not feel comfortable with this installation, then please consider using one of the Recommended Installers in the table below. When installing the FFC into the kit please ensure that the blue stiffener of the FFC is on the bottom and not the top. Because of the involved nature of this installation, Electron Shepherd will not be able to process returns or refunds for boards that have previously been installed on a Wii. We will only be able to accept returns and refunds if the kit has not previously been installed.  All of our kits are programmed, inspected, and verified to be functional prior to being shipped out to our customers. Please be aware that these boards contain components that are sensitive to ESD strikes.  Be sure to handle these using proper ESD handling techniques. FAQs and Debugging If you have some questions about this product or you're looking to debug your installation, then you should start by reviewing our ElectronAVE - FAQ and Debug page. Installation Instructions The following link has instructions on how to install the ElectronAVE into your Wii (please note that this page is a work in progress and I welcome suggestions on how to improve them): ElectronAVE - Installation Instructions. If you'd rather follow a video that shows the installation process from start to finish, then please check out the videos linked in the sections below. Recommended Installers Electron Shepherd is in the process of validating each of these installers (and new installers to add to this list),   Name Email Twitter Website Location Verified? Voultar - @Voultar https://voultar.com/ Kentucky, USA YES iFixRetro info@ifixretro.com @ifixretro - New York, USA YES Modzvilleusa modzvilleusa@gmail.com @modzvilleusa https://modzvilleusa.com/ - YES Retro Digital LLC retrodigitalstore@gmail.com @RetroDigitalLLC https://www.retrodigital.store/ Florida, USA YES PastPerfectGames pastperfectgames@gmail.com @bahamutfan https://www.pastperfectgames.com/ North Carolina, USA YES Prof_gLX atelier.retrotech@gmail.com @Prof_gLX - Quebec, Canada YES PowrUp Gaming powrupgaming@gmail.com @PowrUpGaming https://www.powrupgaming.com/ North Carolina, USA YES Logistics support@logisticsct.com @logisticsct https://www.logisticsct.com/ Connecticut, USA  YES Merki info@merki.net - http://www.merki.net/ Germany YES Pink Skeleton Gaming - @Pink_Skelly https://pink-skeleton-gaming.com/ In Process Nostalgic Indulgences nostalgic.indulgences@gmail.com @nosIndulgences - Singapore In Process Oldskool Consoles david@oldskoolconsoles.com - http://www.oldskoolconsoles.com/ UK Yes Bitjump Gaming upgrades@bitjumpgaming.com @bitjumpgaming https://bitjumpgaming.com/ Salt Lake City, UT Yes Installation Video  @bitjumpgaming Luis asked me to upgrade his Nintendo Wii console. What do you think of the clear shell and internal HDMI port? #retrogaming #nintendo #wii #retrogamingontiktok ♬ Chill Vibes - Febri Handika
