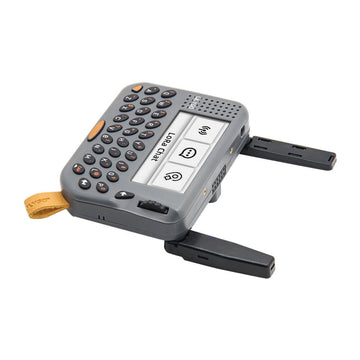

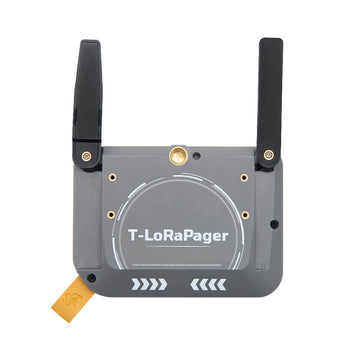

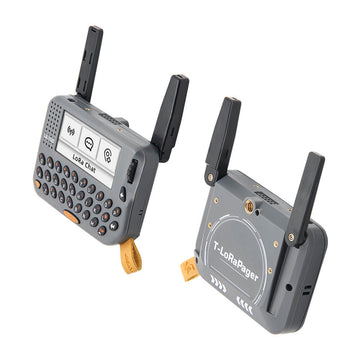

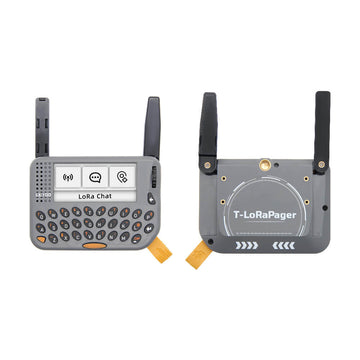

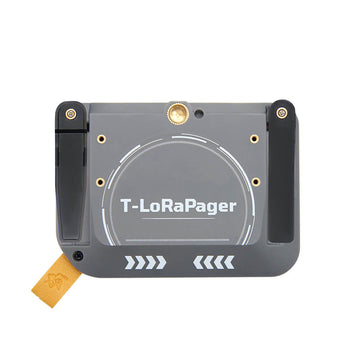

T-Lora Pager is the new member of the LILYGO T series, the compact exterior and foldable external antenna design, fully utilize the wireless performance while keeping the device aesthetically pleasing. UI Demo Built-in UI demo designed by LILYGO supports smooth interaction through encoder. Based on the demo, you can learn to develop programs for different application. scenarios. Core Functions Overview QWERTY keyboard AI support IMU (BHI260AP) 2.33-inch long screen (222 x 480 resolution) U-blox GPS module (MIA-M10Q) RFID/NFC + RTC circuitry TI Power Management Monitoring Chipset ES8311 (microphone/speaker/headphone jack) Encoder + Keypad Specifications MCU ESP32-S3 Flash 16MB PSRAM 8MB Development Arduino-IDE,VS Code,ESP-IDF Board Function RTC, Battery Charger, Battery Gauge, GPl0 Expand, Audio Power Amplifier, TF Card, Keyboard Size 106 x 89x 23mm USB Charging 5V, 500MAH Tech Support   ℹ️Product InformationCheck out our GitHub repository for sample code and more detailed information about this board. 💻Technical supportVisit our GitHub community, post a description of the problem and our engineers will help you directly. What's In The Box
