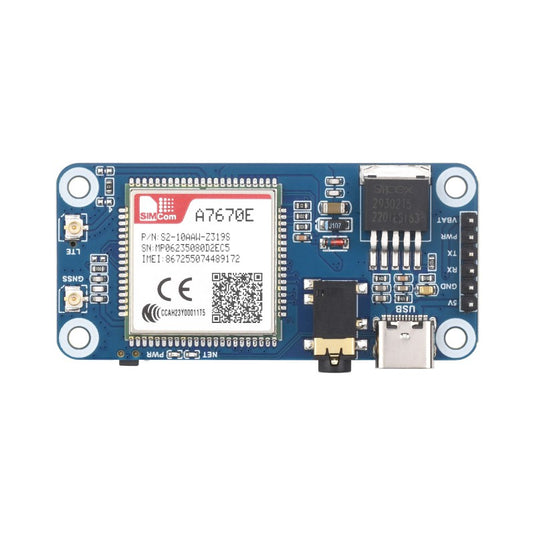

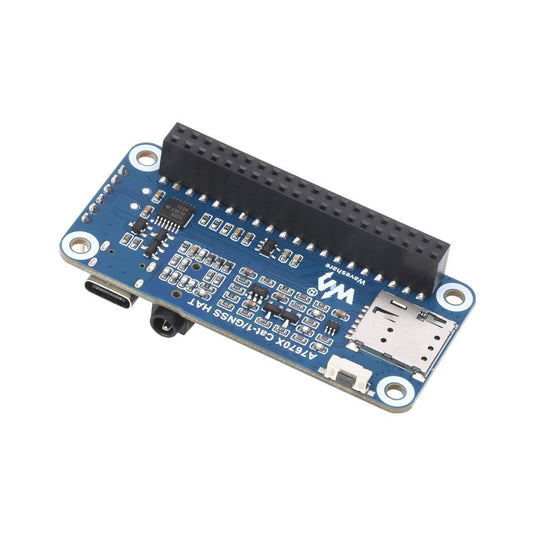

Cat-1/GSM/GPRS/GNSS HAT For Raspberry Pi Based On A7670E, Enabling LTE Cat-1 / 2G Communication, Telephone Call, SMS, LBS Positioning And GNSS Positioning     Features The A7670E Cat-1/GNSS HAT is an LTE Cat-1 module, which supports wireless communication modes including LTE-TDD, LTE-FDD, GSM, GPRS and EDGE, with up to 10Mbps downlink rate and 5Mbps uplink rate. It supports Windows/Linux operating systems and multiple network protocols. The module size is the same as SIM7000/SIM7070 series, and the AT commands are mostly compatible with SIM7600 series. It is suitable for IoT applications like remote information processing, monitoring devices, POS, industrial routers, remote diagnosis, satellite positioning, and so on. Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards Supports protocols including TCP/IP, HTTP(s), MQTT(s), FTP(s), and SSL Supports dial-up, telephone call, SMS Supports LBS base station positioning, it is able to get the approximate position info via mobile network Supports GPS, BeiDou, GLONASS positioning TTS (Text To Speech) feature, texts in Chinese/English can be converted into spoken words Onboard USB interface, for testing AT Commands, network communication, and so on Onboard audio jack for sound recording, making telephone calls, listening the TTS resulting speech, etc. Breakout common used control pins of the A7670E module, make it easy to connect with hosts boards like Arduino/STM32 SIM card slot, supports 1.8V/3V SIM card 2x LED indicators, easy to monitor the operating status Comes with development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)   Specifications FREQUENCY BAND LTE Cat-1 LTE-FDD: B1, B3, B5, B7, B8, B20 2G GSM/GPRS/EDGE: 900/1800 MHz GNSS GPS, BeiDou, GLONASS SMS AND AUDIO SMS Supported types: MT, MO, CB, Text, PDU Storage: USIM card (CB couldn't be stored on SIM card) Audio feature Standard 3.5mm audio jack for audio input/output OTHER Power supply 5V (via USB port or 5V pinheader), 3.7 ~ 4.2V (via VBAT pinheader, supports 3.7V Li-ion battery power input) Operating voltage 3.3V Dimensions 65 × 30.5mm   Multi Band Support Of LTE Cat-1/2G Multi Band And Multi Regions Support, Mainly Applicable In Europe, Southeast Asia, West Asia, Africa, China, South Korea * Please confirm the supported bands according to your local service provider Dial-Up On Windows/Linux LTE Cat-1: Up To 5Mbps (Uplink) / Up To 10Mbps (Downlink)EDGE: Up To 236.8Kbps (Uplink / Downlink)GPRS: Up To 85.6Kbps (Uplink / Downlink)   GNSS Positioning Supports GPS, BeiDou, GLONASS Positioning   Cloud Communication Supports Communication Protocols Including TCP/IP, HTTP(S), MQTT(S), FTP(S), And SSL   Telephone Call & SMS Support Making Telephone Call Or Sending SMS By AT Commands, With Onboard Audio Jack   Pinout Definition   Outline Dimensions Resources WIKI: www.waveshare.com/wiki/A7670E_Cat-1/GNSS_HAT   Package Contents: Weight: 0.116 kg A7670E Cat-1/GNSS HAT x1 USB-A to USB-C cable x1 FPC Antenna x1 GPS Antenna x1 Screws pack x1   Selection Guide PRODUCT A7670E SIM7600E Band LTE Cat-1 LTE-FDD: B1, B3, B5, B7, B8, B20 LTE-FDD: B1, B3, B5, B7, B8, B20LTE-TDD: B38, B40, B41 3G N/A UMTS/HSPA+: B1, B5, B8 2G GSM/GPRS/EDGE: 900/1800 MHz GNSS GPS/Beidou/GLONASS GPS/Beidou/GLONASS/GALILEO/QZSS Data Rate LTE Cat-1 10Mbps(DL)/5Mbps(UL) 3G (HSPA+) N/A 42Mbps(DL)/5.76Mbps(UL) 2G (GPRS/EDGE) 236.8Kbps(DL/UL) Software Features Network protocol TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS Dial-up protocol PPP/RNDIS PPP/NDIS/RNDIS USB driver Windows XP/7/8/10, Linux (driver free for Raspberry Pi OS) Hardware Interfaces SIM card slot Compatible with 1.8V and 3V SIM card UART Supports AT commands through UART, compatible with 3.3V/5V operating voltage USB port Supports AT commands testing, GNSS positioning, firmware upgrading, etc. USB to UART N/A Supports serial debugging, or login to Raspberry Pi Audio jack Supports audio actions like making telephoto call Antenna connector LTE main antenna LTE main antenna + LTE diversity antenna + GNSS antenna Dimensions 65 × 30.5mm 65 × 56.0mm Applications Examples Healthcare, smart payment, Internet talk, environmental monitoring, energy monitoring, fleet management, smart industry, intelligent agriculture, etc. Applicable regions Europe, Southeast Asia, West Asia, Africa, China, South Korea
