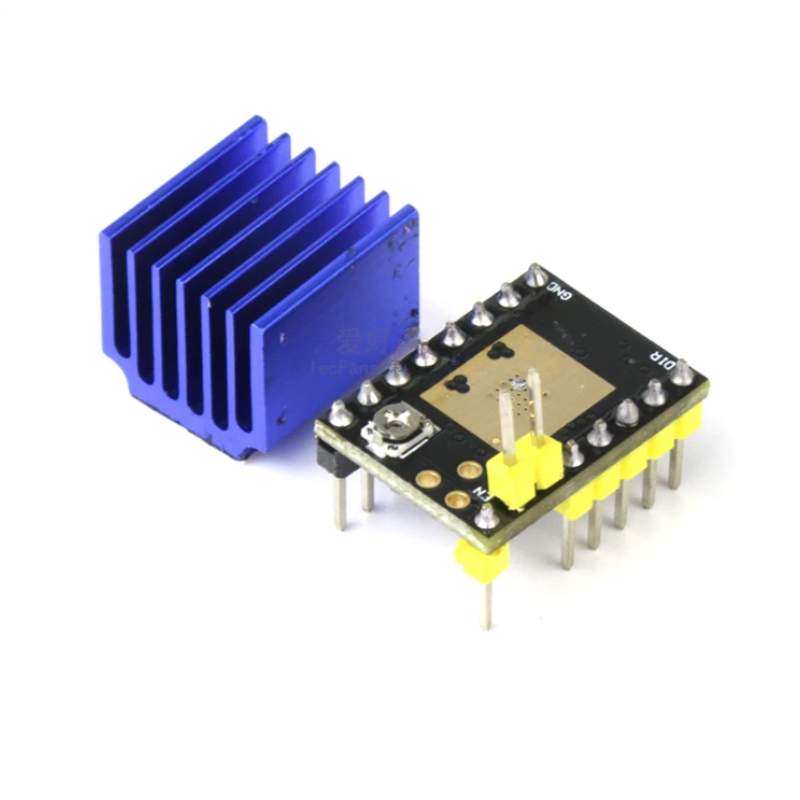

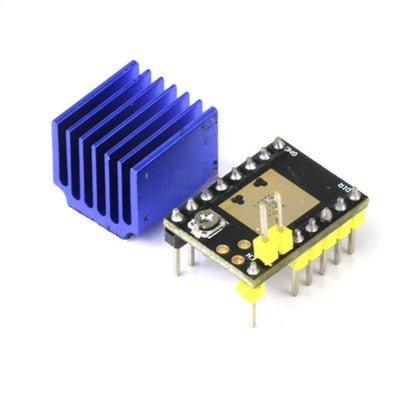

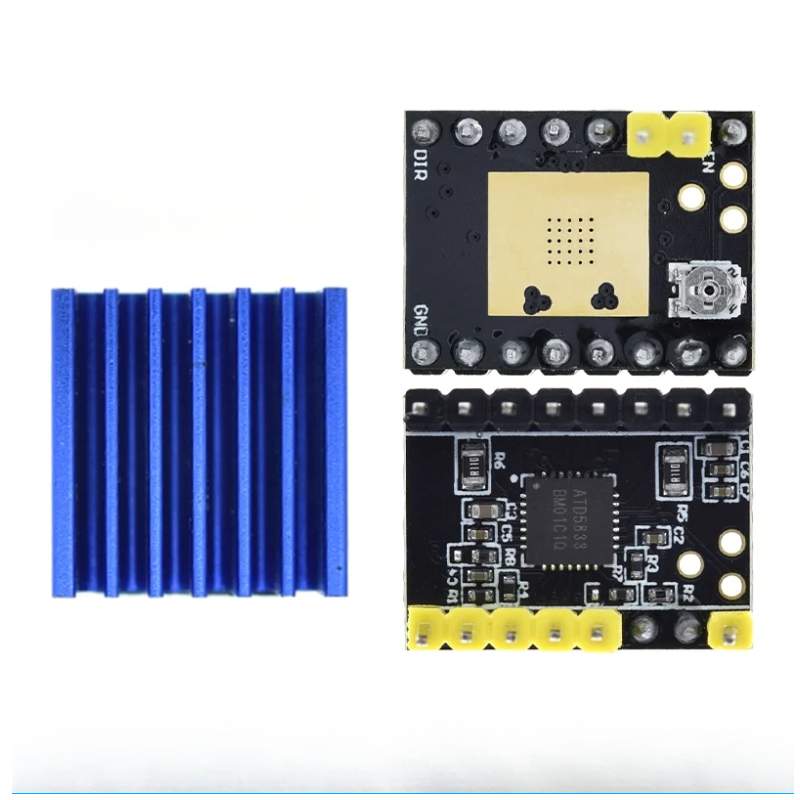

Stepper Motor Driver ATD5833

Description Main parameters: circuit operating limit at TA =25°C Maximum power supply voltage/VM:35V Output Current: ±2.5A Logical Input Voltage:-0.3~5.5V Logical power supply voltage/VCC:-0.3~5.5V Motor output voltage: -2.0~35V Current checking voltage:-0.5 to 0.5V Reference voltage:2.5V Working environment:-40~85°C(Test Conditions: Range S) Maximum junction:150℃ Storage temperature:-55~150℃ Main features: ●Two-phase four-wire bipolar stepping motor drive ●Low conduction resistance RDS(ON)， 2.5A peak current output ●ATD5833: Simple STEP/DIR interface with maximum support for 256 subdivisions ●Low noise ●Supports mixed current attenuation ●Supports half stream locking ●Support low power standby function ●Compatible with 3.3V and 5V logic level ●Complete protection ●Nine optional step modes
