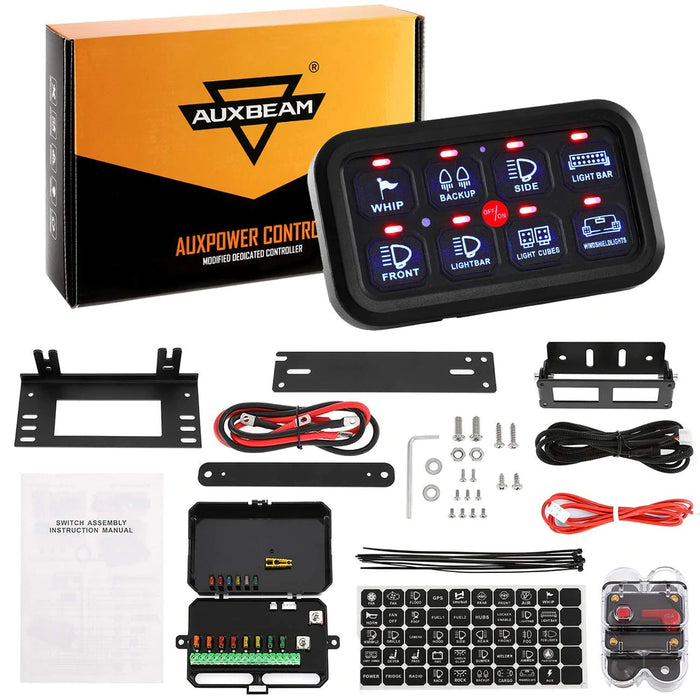

Auxbeam 8 Gang LED Switch Panel Kit (One-Sided)

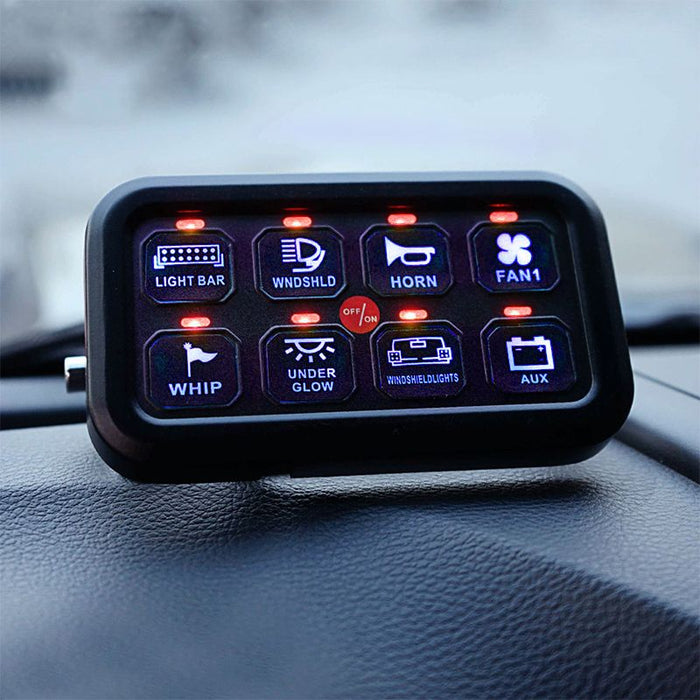

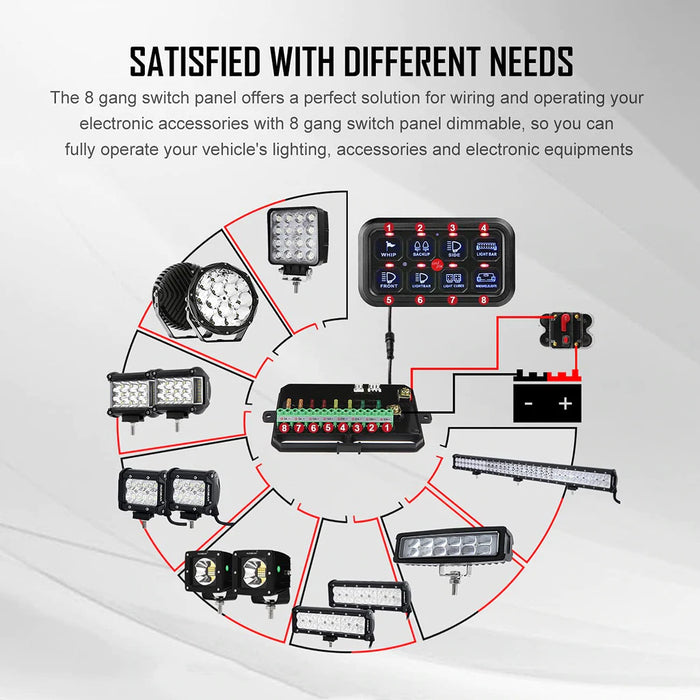

<div role="tabpanel" class="tab-pane show active" id="tabs-description"> <h4><strong data-mce-fragment="1">Features :</strong></h4> <p><strong data-mce-fragment="1">▶8 Gang Switch Panel</strong></p> <div data-mce-fragment="1"> <ul> <li> <strong>8 Gang on-off Control Flat Panel Switch</strong>: Adpot Capacitive sensing technology with blue indicator light display, waterproof IP65, with high sensitivity, stability, and strong anti-interference ability.</li> <li> <strong>Safety protection</strong>: Built-in resettable fuse, reverse polarity protection, over-voltage protection, and over-current protection.</li> <li> <strong>Label Stickers</strong>: Rocker Switch Panel with replacement label stickers by your favor and needs.</li> <li> <strong>Wide application</strong>: 8 In 1 touch screen panel with the 12-24VDC input voltage, fit for most cars, trucks, boats, yachts, and Caravans.</li> </ul> <div data-mce-fragment="1"><strong data-mce-fragment="1">▶47 Inch Extension Cable</strong></div> <div data-mce-fragment="1"> <ul data-mce-fragment="1"> <li data-mce-fragment="1">There is a 4-pin aviation video cable, a cable for transmitting video and power.</li> <li data-mce-fragment="1">It is widely used in truck / Trailer/Bus / Motorhome / long-distance Parking Aid and is connected with a vehicle monitoring CCTV system.</li> <li data-mce-fragment="1">Compatible products: professional CCTV / monitor 4-pin connector monitor, rearview camera, DVD player TV box.</li> <li data-mce-fragment="1">Power input DC 12 V ¨C DC 24 v.</li> <li data-mce-fragment="1">Especially thick hard wire 100% provides super protection against EMI interference and RF interference such as automotive circuit interference.</li> </ul> </div> <ul></ul> </div> <h4 data-mce-fragment="1"> <b><strong>Package Included :</strong></b><br> </h4> <div data-mce-fragment="1">1 Set of 8 Gang on-off Control Switch Panel</div> <div data-mce-fragment="1">1*Extension Cable <strong>(OPTIONAL)</strong> </div> <div data-mce-fragment="1"> <strong style="font-size: 1.4em;" data-mce-fragment="1"></strong><br> </div> <h4 data-mce-fragment="1"> <strong style="font-size: 1.4em;" data-mce-fragment="1"><iframe title="YouTube video player" src="https://www.youtube.com/embed/oyfkg5b0Eco?si=JmP5nbpSGSUN6oMP" height="315" width="560" allowfullscreen="" referrerpolicy="strict-origin-when-cross-origin" allow="accelerometer; autoplay; clipboard-write; encrypted-media; gyroscope; picture-in-picture; web-share" frameborder="0"></iframe></strong><br> </h4> <h4><strong>Installation Guide : </strong></h4> <div data-mce-fragment="1">* Total power will go to 600w at 12V, 1200W at 24V and the maximum current is 60A.<br data-mce-fragment="1">The maximum output current of groud 1 &amp; 2 is 30A, the maximum output current of ground 3-8 is 20A.<br data-mce-fragment="1">* The recommended connection method is to decrease the current gradually from groud 1 to 8 groud.<br data-mce-fragment="1">* Make sure all the lamps are connected before connecting the power cable.</div> <div data-mce-fragment="1"><img src="https://m.media-amazon.com/images/S/aplus-media-library-service-media/e46b7364-1764-4c95-aafb-738d35d260a1.__CR0,0,970,600_PT0_SX970_V1___.jpg"></div> <div data-mce-fragment="1"> <strong data-mce-fragment="1"></strong><br> </div> <h4 data-mce-fragment="1"> <strong data-mce-fragment="1"></strong><br> </h4> <h4 data-mce-fragment="1"><strong data-mce-fragment="1">Guideline for connecting the red control cables:</strong></h4> <div data-mce-fragment="1">The red cable connects the master switch power cable to the ACC.If you want to light up the LED lamps before the car start-up, please connect the recommended because the higher the power is, the more the power of the battery will be consumed.<br> </div> </div> <div role="tabpanel" class="tab-pane" id="tabs-1"> <p><img src="https://m.media-amazon.com/images/S/aplus-media/sc/22b4a251-2f84-4e91-b7fe-45fac2478a95.__CR0,0,970,600_PT0_SX970_V1___.jpg"></p> <p><img src="https://m.media-amazon.com/images/S/aplus-media-library-service-media/51f93941-619b-4534-a9dd-361d62908bf6.__CR0,0,970,600_PT0_SX970_V1___.jpg"></p> <h4 data-mce-fragment="1"> <b><strong>Specification :</strong></b><br> </h4> <h4> <span>Working voltage: DC 12-24V</span><span> </span><span>Rated voltage: 12V 20A / 24V 10A</span><span> </span><span>Switch operation: On-Off</span><span> </span><span></span><span>Operating at 12 Volts: max power rating of 600W</span><span> </span><span>Operating at 24 Volts: max power rating of 1200W</span><span> </span><span>Max current: 60A</span><span> </span><span>Operating temperature: -25°C - +80°C</span><span> </span><span>Waterproof rating: IP65</span> </h4> <span data-mce-fragment="1"></span> </div> <div role="tabpanel" class="tab-pane" id="tab-review"> <div id="shopify-product-reviews" data-id="6636343951565"> <div class="spr-container"> <div class="spr-header"><br></div> </div> </div> </div>
