Gen 5 L83 L86 LT1 Cylinder Head to LT4 Tall Supercharger Adapter Plates Intake

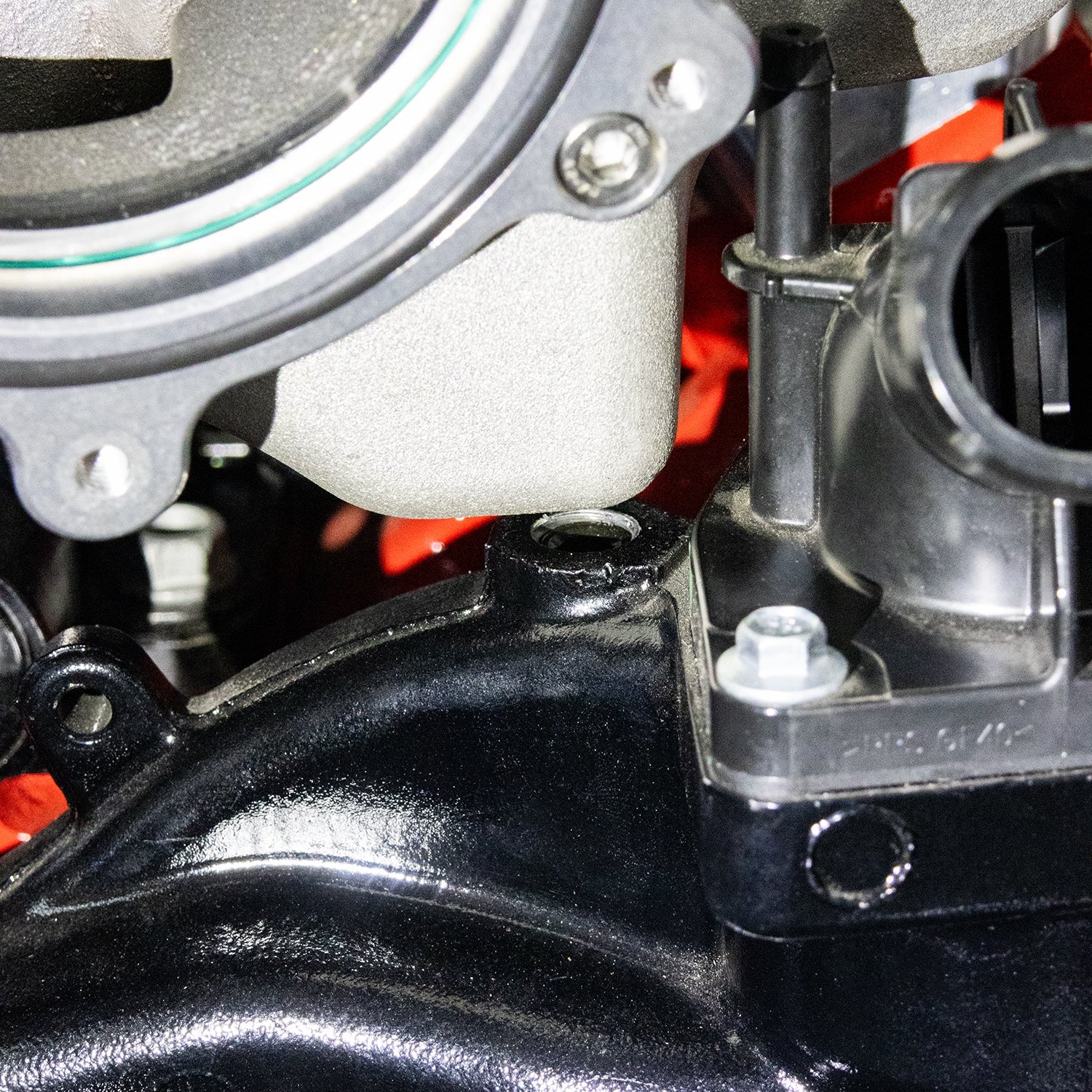

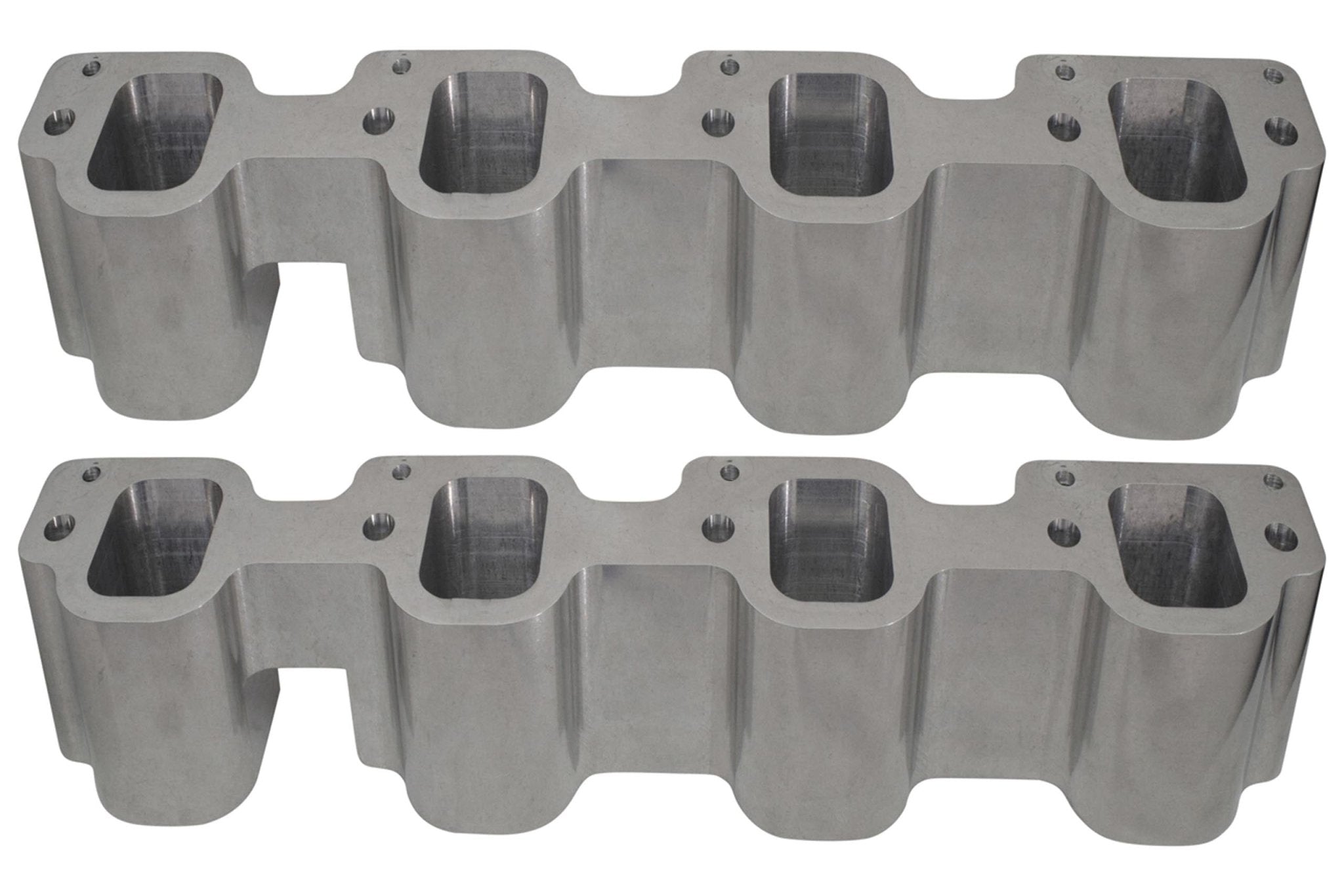

LT Cylinder Heads to LT4 Supercharger Adapter Plates Compatible with: 2014 and newer V8 LT series engines Includes: 2 adapter plates (2-1/2" thick) with 8 O-ring seals, 10 adapter to head bolts, and 10 supercharger to adapter bolts Tall design allows the LT4 supercharger to clear the factory L83 / L86 water pump Made in Wichita, Kansas from aerospace grade, USA produced billet aluminum *not compatible with 2019 and newer truck water pumps (these pumps can be identified by having the water pump pulley in front of the camshaft) LT4 install parts list 551790 accessory idler bracket 551794 throttle body rotation adapter WETHB50-12 throttle body wire extension 551782-M1215 coolant sensor relocation adapter WECTS30-36 coolant sensor wire extension 551383 supercharger vacuum plug 551359 supercharger vacuum plug SEN019 MAP sensor, 3 bar LT4 980K6 belt (98.0 inch, K belt, 6 rib) (ADM) 2.8" LT4 truck conversion pulley and hub (Corvette Supercharger only) (ADM) supercharger pulley removal tool Intercooler, pump, hoses, & quick connector
